Description
This benchtop shaking incubator can maintain the temperature within the range of RT+5~60°C or RT-15-60°C. The 18/48/100L capacity is suitable for large-volume culture of microorganisms, RNA, DNA, proteins and viruses. Suitable for life science and medical research, environmental science and monitoring.
Benchtop Shaking Incubator Specifications:
| Model | ICB-20BS | ICB-50BS | ICB-80S | ICB-80SI |
|---|
| Capacity(L) | 18 | 48 | 100 |
| Circulation | Forced convection |
| Shake Mode | Convolution |
| Orbit Diameter(mm) | Φ26 |
| Cyclotron Frequency | Range (rpm/min) | 0(to do static culture), 40-300 | 0 (to do static culture), 20-300 |
| Resolution (rpm) | ±1 |
| Temperature | Range (℃) | RT+5~60 | RT+5~60 | 10~60 | RT-15-60 (Ambient temp-15) |
| Fluctuation (℃) | ≤0.1(37℃) |
| Resolution (℃) | ± 0.1 |
| Uniformity (℃) | ± 1(37℃) |
| Size (WxDxH) | External (mm) | 440x410x390 | 600x580x510 | 832x690x653 | 780x750x570 |
| Internal(mm) | 320x295x190 | 440x405x270 | 480x450x320 | 480x450x320 |
| Flask Clamp | Max. Capacity | 50mlx12 or
100mlx9 or
250mlx9 | 50mlx20 or
100mlx16 or
250mlx12 or 500mlx9 | 100mlx20 or
250mlx16 or 500mlx12
or 1000mlx5 or 2000mlx4 | 100mlx20 or 250mlx16 or
500mlx12 or 1000mlx5
or 2000mlx4 |
| Standard Capacity | 100mlx9 | 50mlx4 or
100mlx4 or
250mlx3 or
500mlx3 | 50mlx5 or
100mlx5 or
250mlx4 or
500mlx3 | 50mlx5 or
100mlx5 or
250mlx4 or
500mlx3 |
| Controller | PID Microcomputer |
| Control Mode | Fixed value mode, static mode |
| Display | Large high efinition LCD |
| Timer | 1-9999min (or continuous operation) |
| Refrigerant | / | / | R134a (CFC free) |
| Defrosting Mode | / | / | Automatic |
| Safety Device | Self-diagnosis; visible & audible over temperaure, abnormal status alarm, leakage protector |
| Electricity | Voltage /Frequency (V/Hz) | AC 220/110V, 50/60Hz |
| Consumption (W) | 220 | 320 | 580 | 580 |
| N.W./G.W. (kg) | 31/41 | 72/88 | 81/113 | 81/113 |
| Shipping Size (WxDxH) (mm) | 580x530x540 | 740x700x660 | 900x860x760 | 900x860x760 |
| Optional | 7 inches touch screen, USB data storage download processing system, humidity real-time monitoring, various flask clamps, universal spring clamp |
Constant Temperature Shaking Incubator Features:
- Integrated design combining an incubator and shaker, maximizing space efficiency and cost savings.
- Non-volatile memory feature preserves settings during power outages.
- Automatic restart function restores the unit to its original programming once power is restored.

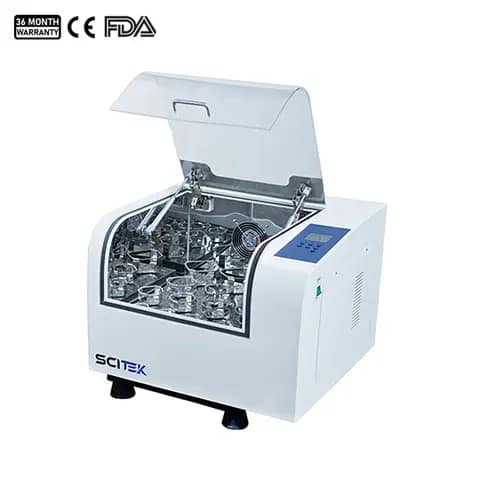

Details of the Best Incubator (ICB-20BS):
The design of the benchtop shaking incubator is simple and neat. The transparent viewing window allows for easy viewing of the incubation inside the incubator. The control panel is well laid out with buttons and knobs for easy operation.
The benchtop shaking incubator is designed with a blue backlight, making it easy to read data in different lighting conditions. The display shows the current temperature, oscillation speed and other key parameters, with clear and easy-to-read information.
