Description

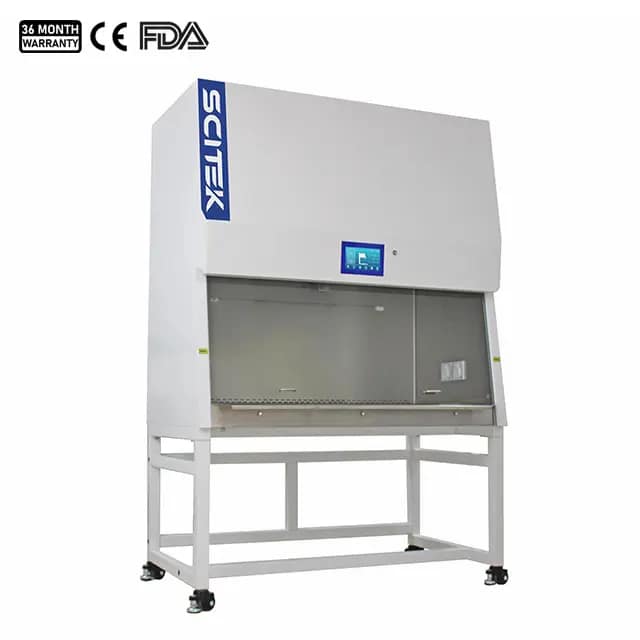

Class II A2 Biological Safety Cabinet:
Class II A2 biological safety cabinet is biological safety isolation equipment used in biological safety labs, It can prevent harmful or unknown biological particulate aerosol from escaping during operation, it’s suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
- Protection: Operator, samples and the environment.

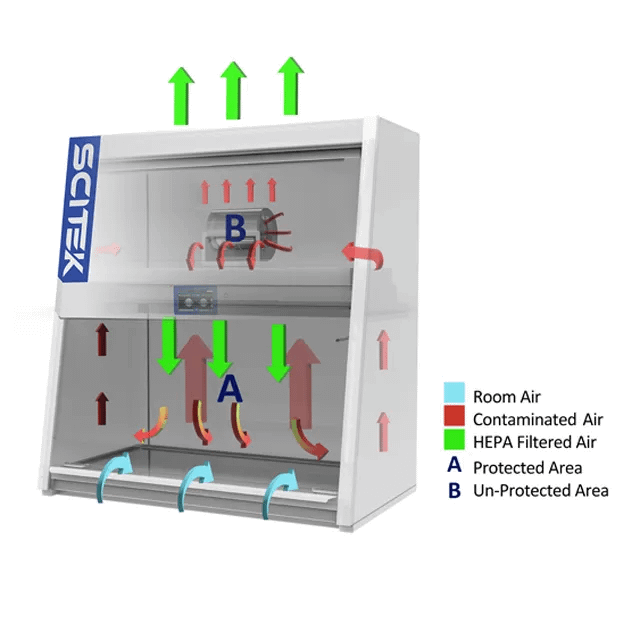

- Airflow System: 70% air recirculation, 30% air exhaust
- Work area: Negative pressure
- Standard with ULPA filter
Biological Safety Cabinet Specifications:
| Model | BSC-IIA2-1100 | BSC-IIA2-1400 | BSC-IIA2-1500 | BSC-IIA2-1800 | BSC-IIA2-2000 |
| External Size (WxDxH)(mm) | 1050x824x2120 | 1400x824x2120 | 1500×824×2120 | 1800×824×2120 | 2000×824×2120 |
| Internal Size (WxDxH)(mm) | 950x666x600 | 1300x666x600 | 1400x666x600 | 1700x666x600 | 1900×666×600 |
| Tested Opening | Safety Height 200mm (8”) | ||||
| Max.Opening | 400mm | ||||
| Work Surface Height | 800mm | ||||
| Airflow System | 70% air recirculation, 30% air exhaust | ||||
| Downflow Velocity | 0.37m/s±0.025m/s | ||||
| Inflow Velocity | 0.55m/s±0.025m/s | ||||
| Filters | Two, ULPA filter, ≥99.9995% efficiency at 0.12 μm, filter life indicator | ||||
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) | ||||
| Display | LCD touch screen | ||||
| Alarm | Abnormal airflow velocity, ULPA filter failure, UV lamp failure, Front window at unsafe height | ||||
| Front Window | Motorized, Two-layer laminated toughened glass ≥ 5mm. Anti UV. | ||||
| LED Lamp | 30Wx2 | 36Wx2 | 36Wx2 | 36Wx2 | 36Wx2 |
| UV Lamp | 20Wx1 | 30Wx1 | 40Wx1 | 40Wx1 | 40Wx1 |
| Max.Consumption | 896W (Not include socket loading power consumption) | ||||
| Illumination | ≥800Lx | ||||
| Sound Emission | ≤65dB(A) | ||||
| Power Supply | AC220V, 50Hz/60Hz, 110V, 60HZ | ||||
| Material | External Main body: Electro-galvanized steel with antimicrobial Powder Coating | ||||
| Work surface: 304 stainless steel | |||||
| Standard Accessories | 1. Base stand; 2. Air Velocity sensor; 3. ULPA filter; 4. LCD touch screen; 5. LED lamp×2; 6. UV lamp×1; 7. Waterprof socket×2; 8. Motorized Front window; 9. Caster; 10. Foot switch | ||||
| Optional Accessories | 1. Gas tap; 2. Water tap; 3. IV bar with hooksl; 4. Manual adjustable base stand; 5. Exhaust Thimble canopy and 6m Air duct assembly | ||||
| Net Weight | 224kg | 263kg | 290kg | 370kg | 430kg |
| Gross Weight | 291kg | 349kg | 380kg | 495kg | 560kg |
| Shipping Size (WxDxH)(mm) | 1210x1140x1710 | 1560x1140x1710 | 1660x1140x1710 | 1960x1140x1710 | 2160x1140x1710 |
| Shipping Volume (m3) | 2.4 | 3.1 | 3.3 | 3.8 | 4.2 |
Class II Biological Safety Cabinet Features:
- UV sterilization function and timing function can be set by appointment.
- Automatic air speed adjustable.
- With memory function in case of power-failure.
- Audio and visual alarm (Abnormal airflow velocity, filter failure, UV lamp failure, Front window at unsafe height).
- Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; Blower and front window.
Class II Biological Safety Cabinet Detail Display:
LCD touch screen, 7 inch, easy to operate
ULPA filter (Standard)
Removable Work Zone – SS304(Easy to pull out, cleaning and disinfection)
Air Velocity Sensor
Class II Biological Safety Cabinet Packaging Display:
The biological safety cabinet comes as a complete package, eliminating the need for complex assembly on site, reducing installation effort and increasing installation efficiency.
Multi-layer protection provides an extra layer of cushioning to ensure the class ii biological safety cabinet is secure during transport.
Securely fastened to a wooden pallet to avoid slipping and bumping during transport.
Each accessory is individually wrapped in a moisture-proof plastic bag, which effectively prevents the intrusion of dust, dirt and moisture and ensures that the accessory remains clean and dry during transport and storage.
