Description

Specifications

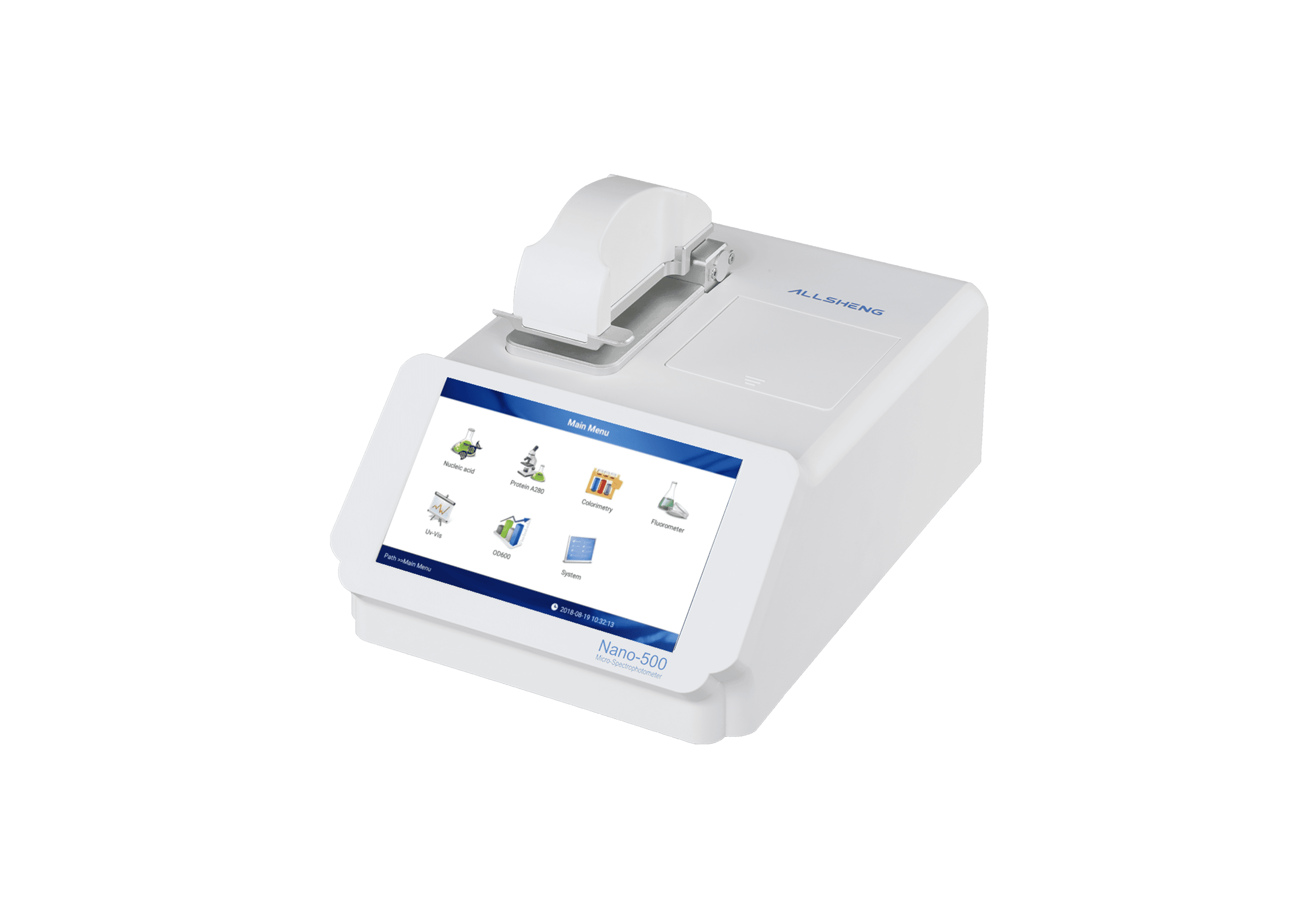

• Model
  Nano-500
• Wavelength range
  200-800 nm
• Minimum sample size
  0.5-2.0 μl
• Path length
  0.05 mm, 0.2 mm, 1.0 mm
• Light source
  Xenon flash lamp
• Detector type
  2048-Linear CCD array
• Wavelength accuracy
  1 nm
• Spectral resolution
  ≤3 nm
• Absorbance precision
  0.003Abs
• Absorbance accuracy
  1 % (7.332Abs at 260 nm)
• Absorbance range
  0.04 – 300A
• Detects nucleic acid up to
  2-15000 ng/μl (dsDNA)
• Measurement time
  <6 S
• Data output
  USB
• Sample pedestal materia
  Aluminum alloy and Quartz fiber
• Operating voltage
  DC 24 V 2 A
• Operating power
  25 W
• Standby power
  5 W
• Dimension (WxDxH)mm
  208×320×186
• Weight
  3.6kg
• Software compatibility
  Android system
• OD600nm measurement
• Light source
  LED
• Wavelength range
  600±8 nm
• Absorbance range
  0-4 A

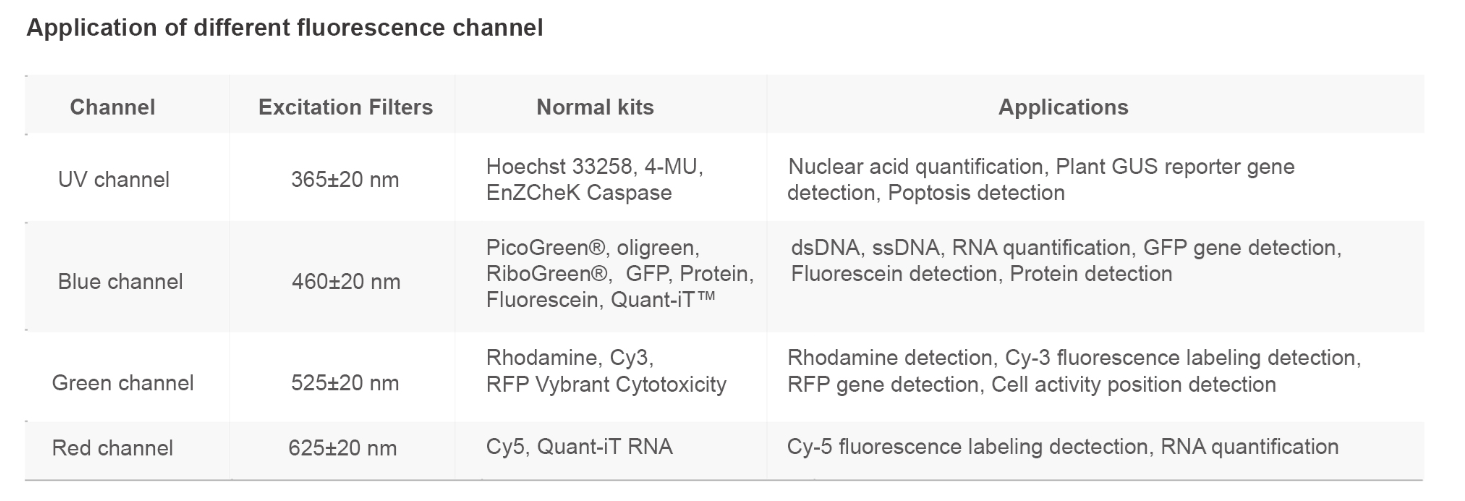

• Fluorescent detection
• Sensitivity
  dsDNA：0.5 pg/μl
• Linear dynamic range
  R²≥0.995
• Repeatability
  ≤1.5 %
